Online Low MOQ Professional High-end Melbourne Photovoltaic Cable in High-quality Factory & Brands-Jiuyang

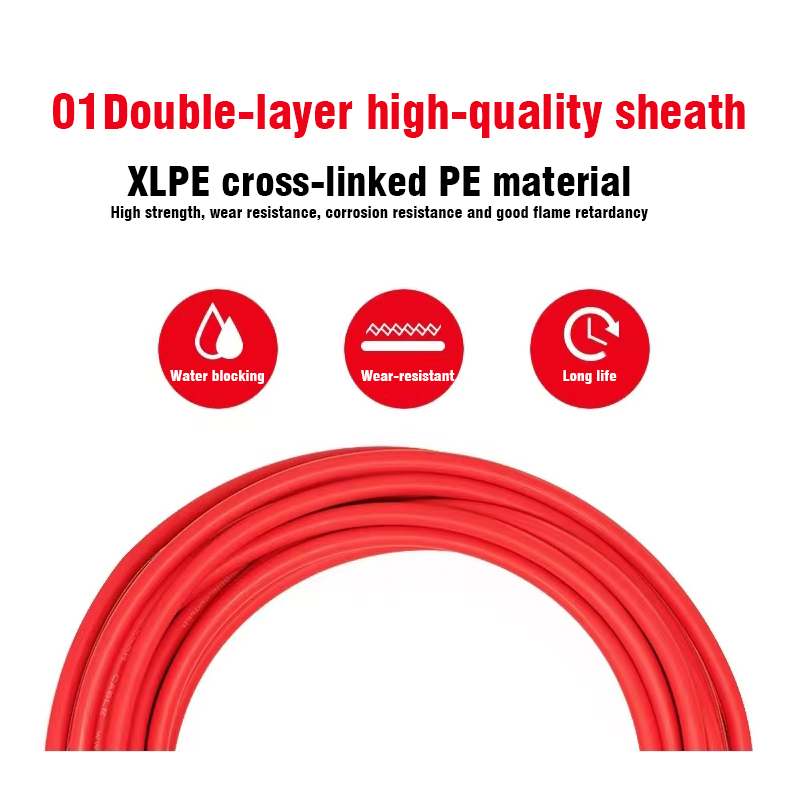

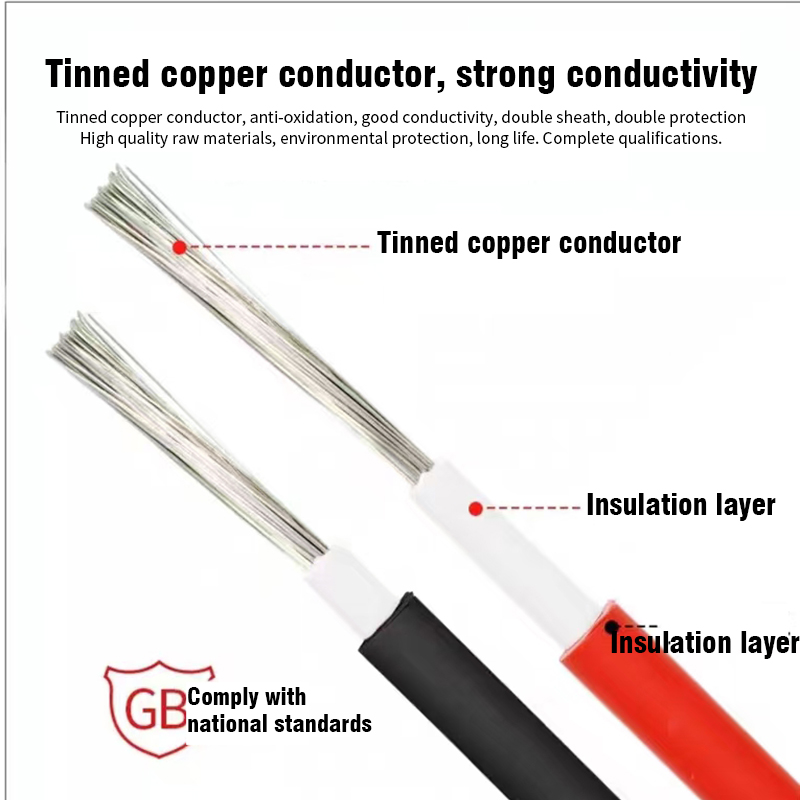

Tinned copper conductor, anti-oxidation, good conductivity, double-layer double-jacket double-layer protection, high-quality raw materials, environmentally friendly and long life, insulation irradiation process, after irradiation, insulation heat resistance is increased to 120°C, strong radiation resistance, excellent crack resistance, waterproof and oil-proof.

PV1-F Product Parameters

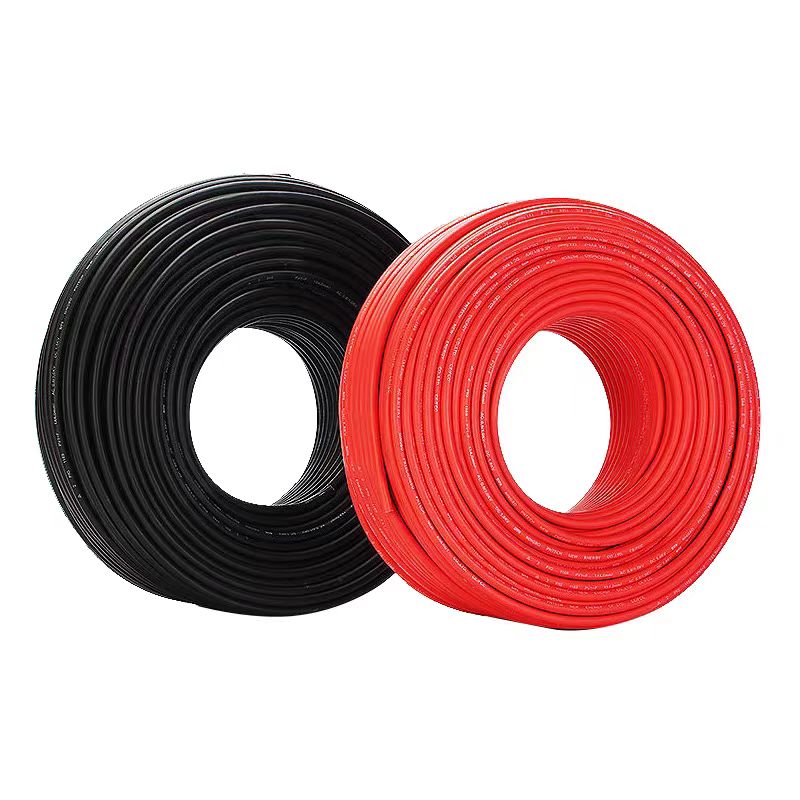

Photovoltaic cable
Technical Data
Rated voltage: AC 1KV DC1/1.5KV

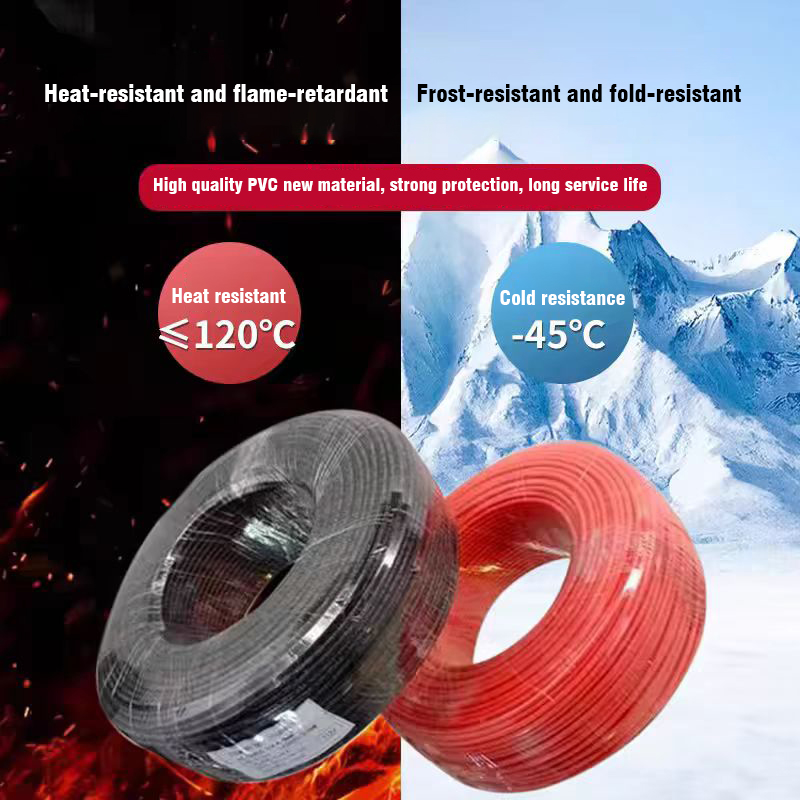

Rated temperature: low temperature -45/high temperature 120°C
Rated current: 41/55/70A

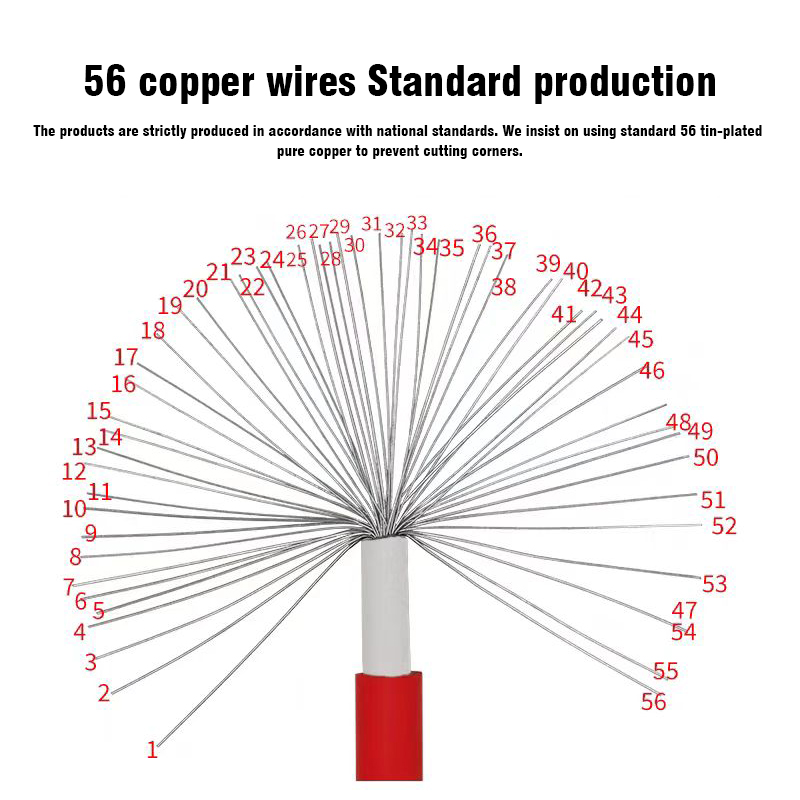

Conductor: tinned copper strands
Bending radius: φ≤12mm:3XDφ>12mm:4XD
Conductor resistance: (20℃)≤5.09/KM
Application areas: large photovoltaic power stations, urban commercial power generation, etc.

Photovoltaic line specification parameter table
Conductor specification mm²	Cable outer diameter mm	Resistance Ω20℃Conductor upper limit	Insulation thickness mm	Sheath thickness mm	Rated voltage V	Rated temperature	Reference Standards
1.5	4.5	13.7	0.7	0.7	1/1.5kv	90°	National Standard
2.5	5.0	8.21	0.7	0.7	1/1.5kv	90°	National Standard
4.0	5.7	5.09	0.7	0.8	1/1.5kv	90°	National Standard
6.0	6.4	3.39	0.75	0.8	1/1.5kv	90°	National Standard
10	7.4	1.95	0.75	0.8	1/1.5kv	90°	National Standard
16	8.9	1.24	0.8	0.8	1/1.5kv	90°	National Standard
25	10.3	0.795	0.8	0.9	1/1.5kv	90°	National Standard
35	11.8	0.565	0.8	0.9	1/1.5kv	90°	National Standard
